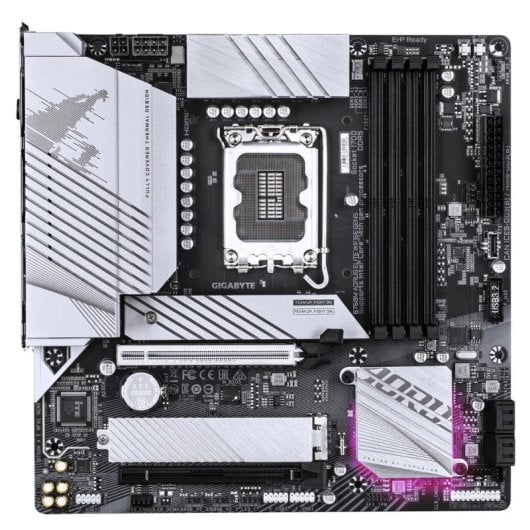

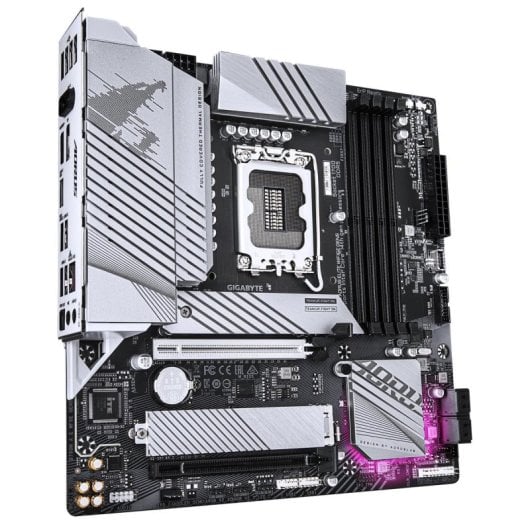

Motherboard Gigabyte B760M AORUS ELITE AX

About the product
GIGABYTE motherboards deliver unmatched performance thanks to their innovative and optimized thermal design, ensuring top stability and low temperatures for the CPU, chipset, and SSD, even under full load or during high-performance gaming.

Features
This motherboard supports Intel® LGA 1700 processors from the 12th and 13th generation, offering exceptional performance through its 12+1+1 phase twin digital VRM solution. It features dual-channel DDR5 memory slots, supporting up to 128 GB across four DIMM slots and XMP 3.0 memory profiles for high-speed configurations up to 7600 MHz.

For next-generation storage, it includes two PCIe 4.0 x4 M.2 connectors. Advanced thermal design and M.2 thermal guards ensure VRM stability and SSD performance. With EZ-Latch Plus, installing or removing M.2 storage is tool-free and simple.

Connectivity includes 2.5 GbE LAN and Intel® Wi-Fi 6E with Bluetooth 5.3 for fast and reliable networking. It also features front USB-C® with 10 Gb/s and rear USB-C® with 20 Gb/s, along with DisplayPort and HDMI outputs. Smart Fan 6 provides comprehensive cooling control with multiple sensors and hybrid fan headers.

You can update the BIOS effortlessly with Q-Flash Plus, without needing to install a CPU, memory, or graphics card.

Specifications
This micro ATX motherboard supports Intel processors including Celeron, Pentium Gold, and Core i3 through i9 on the LGA 1700 socket. It supports DDR5-SDRAM memory, up to 128 GB across 4 DIMM slots with speeds ranging from 4000 MHz up to 7600 MHz, and unbuffered, non-ECC modules.

For storage, it supports both HDD and SSD with one M.2 slot and four SATA III ports. RAID configurations of 0, 1, 5, and 10 are supported. It supports AMD CrossFireX multi-GPU setups and offers a maximum resolution of 4096 x 2304 pixels with HDCP support.

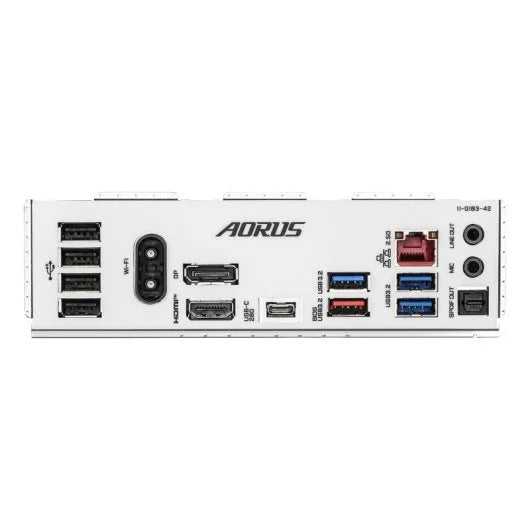

Internal I/O includes USB 2.0, USB 3.2 Gen 1 and Gen 2 headers, four SATA ports, an SPDIF out, CPU and chassis fan headers, a 24-pin ATX power connector, an 8-pin EPS connector, RGB LED headers, and more. Rear I/O includes USB Type-A and Type-C ports with up to 20 Gb/s speeds, 2.5 GbE LAN, HDMI, DisplayPort, audio jacks, and Wi-Fi antenna connectors.

Networking options include both wired Ethernet up to 5 GbE and Wi-Fi 6E (802.11ax). Bluetooth 5.3 is also supported.

The board features 7.1-channel audio output, system health monitoring, and support for Windows 10 and 11. PCIe 4.0 x16 is available for graphics, and UEFI AMI BIOS is included with 256 MB memory and ACPI 5.0 support.

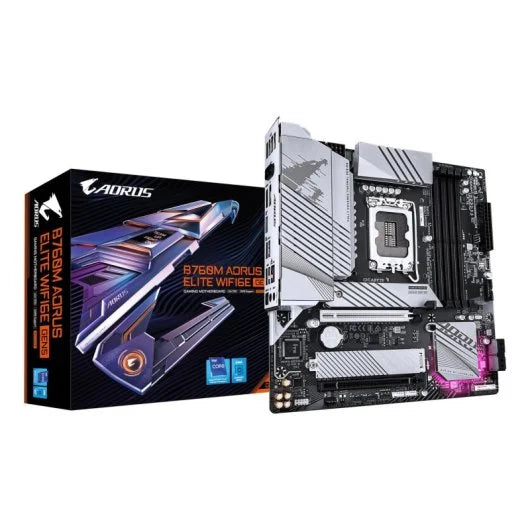

The motherboard measures 244 mm x 244 mm and includes Norton Internet Security software in the package.
