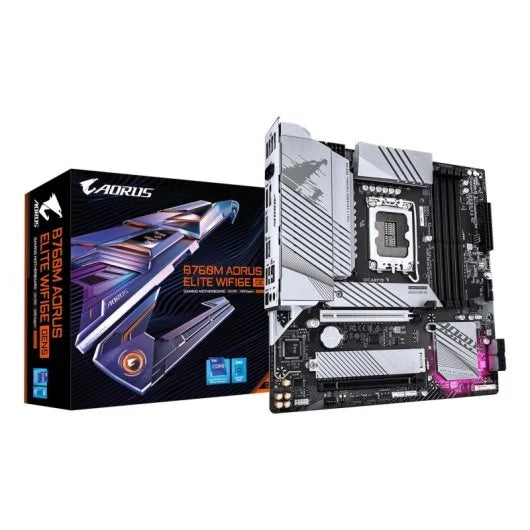

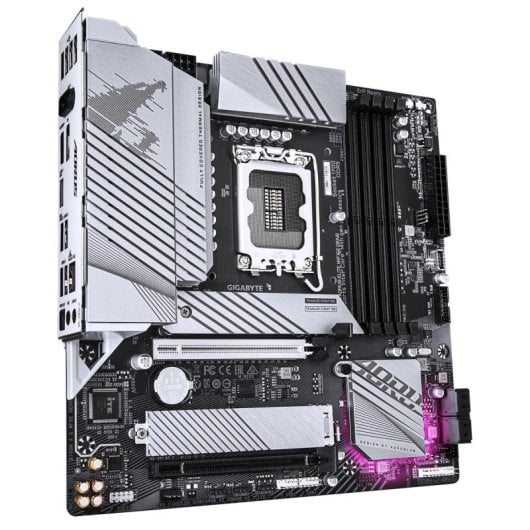

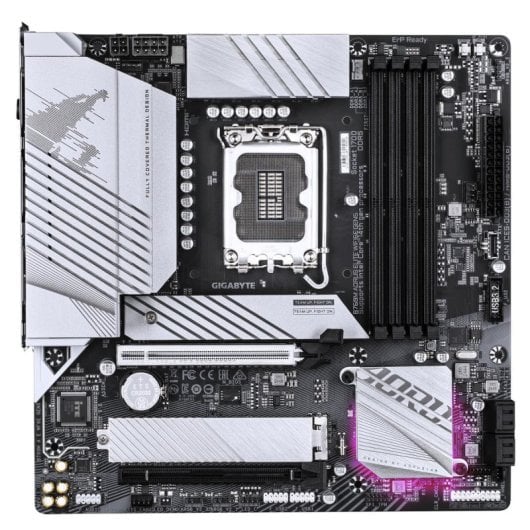

Motherboard Gigabyte B760M AORUS ELITE Intel B760 DDR5 micro ATX

About the product
Boost your professional or gaming PC with the Gigabyte B760M AORUS ELITE, the perfect foundation for demanding systems that require high performance, advanced connectivity, and guaranteed reliability.

This micro ATX motherboard is designed for advanced users, content creators, and gamers looking for versatility and stability. With the Intel B760 chipset and support for Intel Core processors up to the 14th generation on the LGA 1700 socket, it enables the creation of high-end workstations and gaming setups capable of handling multitasking, rendering, and streaming with ease.

It offers four DDR5 DIMM slots supporting up to 256 GB at 5600 MHz, ensuring smooth performance for intensive tasks and advanced professional work. Two PCIe 4.0 M.2 slots (up to 22110) and SATA III connectivity allow for ultrafast storage configurations and RAID 0, 1, 5, and 10 for both speed and data safety.

For fast and stable networking, it features 2.5 GbE LAN via the Realtek RTL8125 chip and Intel AX210 WiFi 6E with Bluetooth 5.3, ensuring smooth transfers both wired and wireless. Premium audio powered by the Realtek ALC1220-VB codec provides 7.1-channel sound, ideal for immersive gaming and multimedia production.

The board also supports future-ready expansion with a PCIe 5.0 x16 slot for the latest GPUs and RGB addressable headers for advanced customization. It comes equipped with USB 3.2 Gen 2x2 Type-C, HDMI 2.1, and DisplayPort 1.2 to fully support modern peripherals and 4K displays. Its micro ATX form factor makes it ideal for compact builds without sacrificing power or features.

Upgrade, expand, and unleash your hardware with professional-grade stability and support. Choose the Gigabyte B760M AORUS ELITE to bring your setup to the next level.

Specifications in text format
This micro ATX motherboard supports Intel Core processors of the 12th, 13th, and 14th generations, as well as Pentium and Celeron, on the LGA 1700 socket. It is built on the Intel B760 chipset and supports up to 256 GB of DDR5 memory across four dual-channel DIMM slots at speeds up to 5600 MHz, with both ECC and non-ECC unbuffered modules supported.

It offers two PCIe 4.0 M.2 slots for storage (up to 2280 or 22110 in size), along with four SATA III ports and RAID support for levels 0, 1, 5, and 10.

For graphics expansion, it includes one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot. Networking includes a 2.5 GbE Realtek LAN port and Intel AX210 WiFi 6E with Bluetooth 5.3 support. It features Realtek ALC1220-VB for 7.1-channel audio output.

Rear I/O includes four USB 2.0 ports, three USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-A port, and one USB 3.2 Gen 2x2 Type-C port. Video outputs include HDMI 2.1 and DisplayPort 1.2, supporting resolutions up to 4096 x 2304 pixels.

Internal connectors include USB 2.0, USB 3.2 Gen 1 and Gen 2 headers, and four addressable RGB headers. It is compatible with Windows 10 and 11 (64-bit) and comes with a 3-year warranty.
