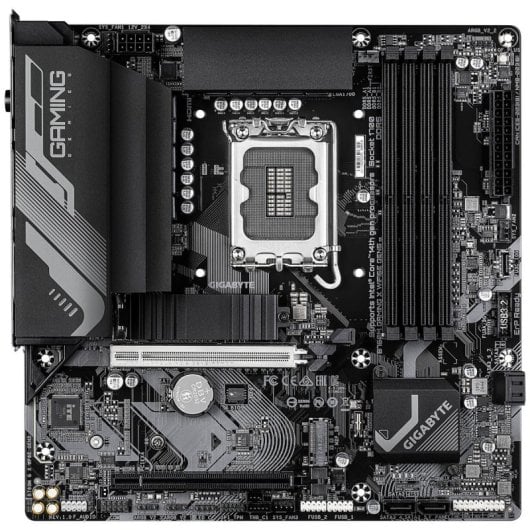

Gigabyte B760M Gaming X Intel B760 DDR5 micro ATX

About the product
Take your system to the next level with the Gigabyte B760M Gaming X, the ideal motherboard for enthusiasts and gamers who need powerful performance, connectivity, and expansion capabilities.

Designed to harness the full potential of Intel Core processors from the 14th, 13th, and 12th generations (including Pentium and Celeron) on the LGA 1700 socket, this board features 8+1+1 digital VRMs. It ensures stable power delivery even to high-performance CPUs, making it ideal for overclocking, gaming, and content creation.

It supports up to 256 GB of DDR5 memory at speeds up to 5600 MHz across four dual-channel DIMM slots, with both ECC and non-ECC compatibility (up to 64 GB per slot). Perfect for multitasking, video editing, professional workloads, and AAA gaming without compromise.

In terms of storage, the B760M Gaming X supports up to two PCIe 4.0 M.2 SSDs and four SATA III drives, with RAID 0, 1, 5, and 10 options. This setup ensures ultra-fast boot times and data-secure hybrid storage options—ideal for high-end gaming systems or professional workstations.

For advanced connectivity, it offers PCIe 5.0 x16 and PCIe 3.0 x16 slots, Realtek 2.5GbE LAN, Wi-Fi 6E (Intel AX210), and Bluetooth 5.3. Combined with USB 3.2 ports and HDMI 2.1/DisplayPort 1.2 outputs, this board can power modern setups with high-speed networks, 4K displays, and fast peripherals.

Built in a robust micro ATX form factor, it’s perfect for compact builds that don't compromise on performance or cooling capabilities. It also includes addressable RGB headers for full customization and a well-equipped rear I/O panel.

Whether you're upgrading or building from scratch, the Gigabyte B760M Gaming X is a reliable, future-proof platform ideal for gaming, video production, and technical applications. Step up to pro-level performance and bring your project to the next level.

Specifications in text format
This micro ATX motherboard uses the LGA 1700 socket and Intel B760 chipset, supporting Intel Core 14th, 13th, and 12th Gen processors, as well as Celeron and Pentium models. It supports up to 256 GB of DDR5 memory across four dual-channel DIMM slots at speeds up to 5600 MHz, with ECC and non-ECC memory types supported.

It includes one PCIe 5.0 x16 slot and one PCIe 3.0 x16 slot for graphics expansion. Storage features include two PCIe 4.0 M.2 slots supporting sizes up to 22110, and four SATA III ports with RAID 0, 1, 5, and 10 support.

Networking is provided by a Realtek RTL8125 2.5GbE LAN controller, along with Intel AX210 Wi-Fi 6E and Bluetooth 5.3. The onboard audio system is powered by the Realtek ALC897 codec, supporting 7.1-channel output.

Integrated video output options include HDMI 2.1 and DisplayPort 1.2. The rear I/O panel offers five USB 2.0 ports and three USB 3.2 Gen 1 Type-A ports.

The board features four addressable RGB headers, uses a 24-pin ATX and 8-pin CPU power connector, and comes with a 3-year warranty. It measures 244 x 244 mm.
