Motherboard Asrock Intel B760 Micro ATX DDR5

About the product
Unleash maximum performance in your system with a motherboard designed for enthusiasts, creators, and demanding gamers. Enhance your configuration with next-generation technology and robust connectivity.

This ASRock Intel B760 motherboard offers full compatibility with the latest Intel® Core™ processors, including i5, i7, and i9 models on the LGA 1700 socket. Whether you're building a system for professional editing, competitive gaming, or high-end workstation tasks, this board delivers optimized performance without bottlenecks.

You get support for ultra-fast DDR5 memory with four DIMM slots capable of housing up to 128 GB in dual-channel configuration. This ensures excellent bandwidth and outstanding responsiveness for demanding applications and heavy multitasking, without ECC limitations.

Connectivity is versatile and powerful, featuring WiFi 6E, Bluetooth 5.3, and 2.5 Gigabit Ethernet for both wireless and wired networks. Whether you're streaming, participating in LAN events, or managing high-data workflows, the network design ensures fast and reliable performance.

For storage, it supports both traditional HDDs and high-speed NVMe SSDs via M.2 and SATA III interfaces, enabling quick load times and ample flexibility for expansion based on your project needs.

Expandability is also a highlight with PCIe Gen5 support for modern GPUs, and additional PCIe slots for cards and upgrades. The onboard Realtek ALC897 7.1-channel audio, RGB headers, and M.2 slot provide further customization and performance options.

The Intel B760 chipset combined with ASRock’s UEFI AMI BIOS ensures a stable system, easy updates, and enhanced hardware longevity. If you're seeking a reliable and future-proof foundation without performance compromises, this motherboard is a prime choice.

Specifications in text format
This Micro ATX motherboard uses the LGA1700 socket and Intel B760 chipset, supporting Intel® Core™ i5, i7, and i9 processors. It offers four DDR5 DIMM slots that support up to 128 GB of non-ECC, unbuffered memory in dual-channel configuration.

Storage options include one M.2 PCIe slot and four SATA III ports, accommodating both SSDs and HDDs. Expansion is enabled via one PCIe Gen5 x16 slot for graphics cards, one PCIe Gen1 x4 slot, one PCIe Gen4 x1 slot, and an additional M.2 interface for storage or other modules.

Network connectivity is robust, featuring a 2.5 Gigabit Ethernet port (Dragon RTL8125BG) alongside Wi-Fi 6E and Bluetooth 5.3 capabilities. The Realtek ALC897 audio codec delivers 7.1-channel high-definition audio.

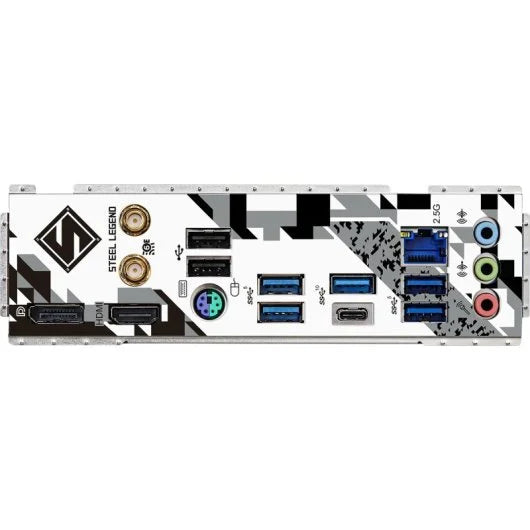

Rear USB connectivity includes two USB 2.0 ports, four USB 3.2 Gen1 Type-A ports, one USB 3.2 Gen2 Type-A port, and one USB 3.2 Gen2 Type-C port. Display output is supported via HDMI and DisplayPort 1.4.

The motherboard supports RGB lighting via onboard LED connectors, includes an integrated TPM module, and uses a 128 MB UEFI AMI BIOS for easy configuration and updates. It is compatible with Windows 10 64-bit and Windows 11 64-bit operating systems, measures 244 x 244 mm, and comes with SATA cables included.
