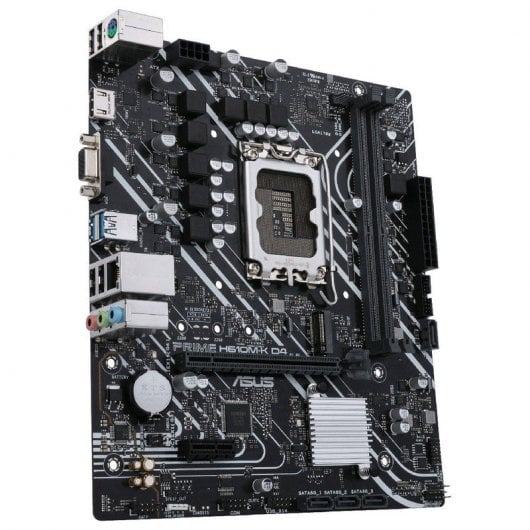

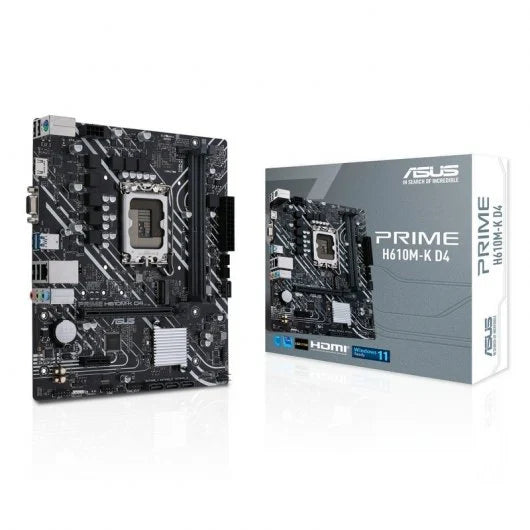

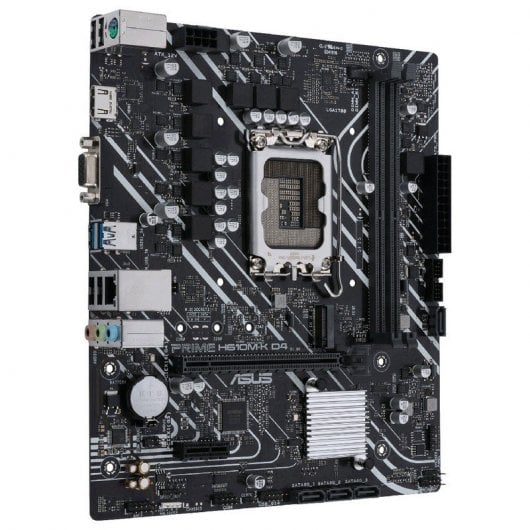

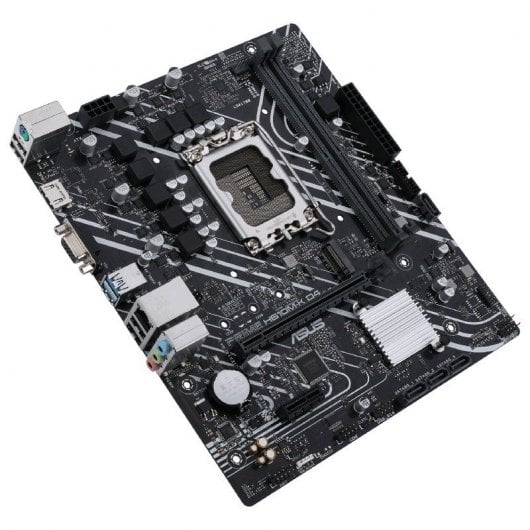

Motherboard Asus PRIME H610M-K D4

About the product
The ASUS Prime H610M-K D4 is a micro-ATX motherboard featuring the Intel® H610 chipset and LGA 1700 socket. It supports DDR4 memory, PCIe 4.0, an M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM ports and RGB headers.

Features
The motherboard uses the Intel® LGA 1700 socket and is compatible with 12th Gen Intel® processors. It offers comprehensive cooling solutions, including a PCH heatsink and Fan Xpert control. Connectivity is optimized with a 32 Gbps M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 support. ASUS 5X Protection III delivers hardware safety features for full system protection.

Specifications

CPU
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors using Intel® Socket LGA1700. Intel® Turbo Boost Technology 2.0 and Turbo Boost Max 3.0 are supported, depending on the CPU.

Chipset
Intel® H610 chipset.

Memory

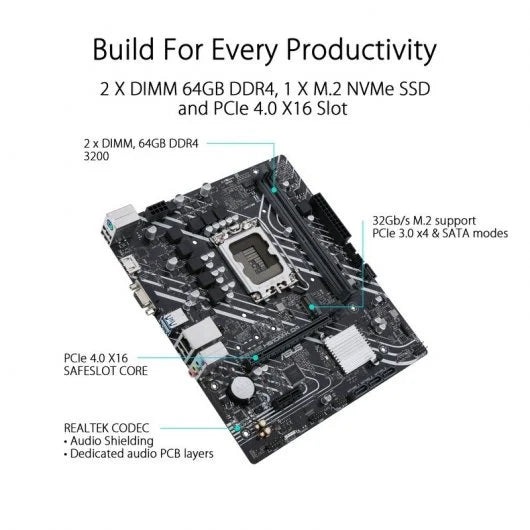

Supports up to 64GB DDR4 non-ECC, unbuffered memory across two DIMM slots, with speeds up to 3200 MHz. Dual-channel architecture is supported, along with Intel® XMP for overclocking.

Graphics
Includes one D-Sub and one HDMI® port, with graphics specifications varying by CPU. HDMI® supports up to 4K resolution at 60Hz.

Expansion Slots
Includes one PCIe 4.0 x16 slot (for 12th Gen Intel® CPUs) and one PCIe 3.0 x1 slot.

Storage
Provides one M.2 slot (supports PCIe 3.0 x4 and SATA modes) and four SATA 6Gb/s ports. The M.2 slot shares bandwidth with the fourth SATA port, disabling it if M.2 SATA is used.

Networking
Features Realtek 1Gb Ethernet.

USB Ports
The rear panel includes two USB 3.2 Gen 1 Type-A ports and four USB 2.0 Type-A ports. Internal headers support two additional USB 3.2 Gen 1 and two USB 2.0 ports.

Audio
Uses the Realtek 7.1 surround sound high definition audio codec with features like jack-detection, multi-streaming, and front panel jack-retasking. Audio playback supports up to 24-bit/192 kHz. A chassis with HD audio input is required for 7.1 output.

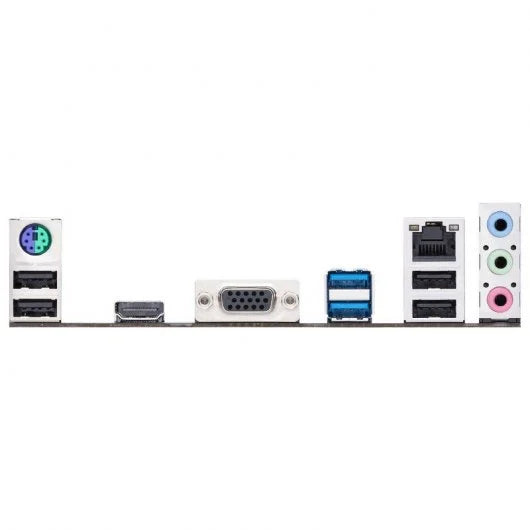

Rear Panel I/O Ports

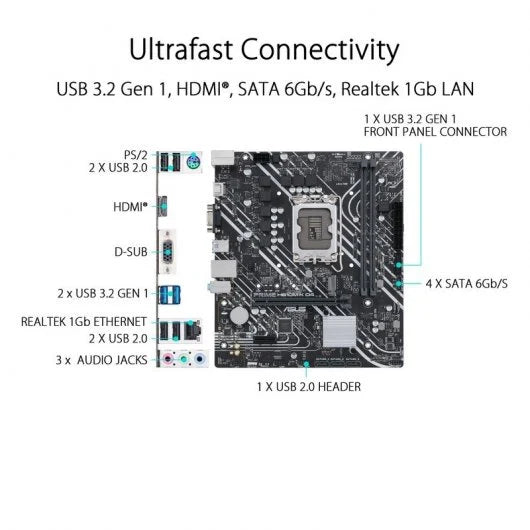

Includes two USB 3.2 Gen 1 Type-A ports, four USB 2.0 Type-A ports, D-Sub and HDMI® video outputs, a Realtek 1Gb Ethernet port, three audio jacks, and one PS/2 port for keyboard or mouse.

Internal Connectors

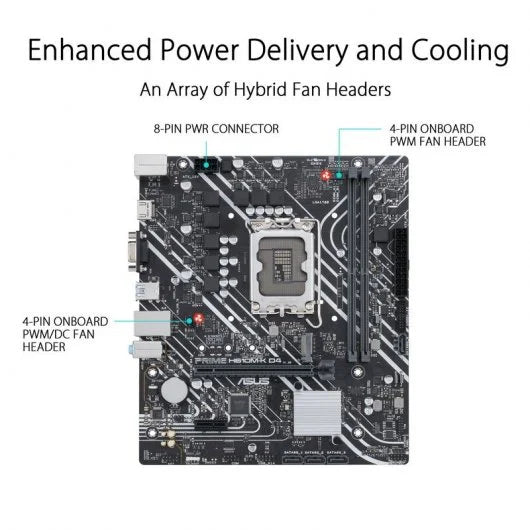

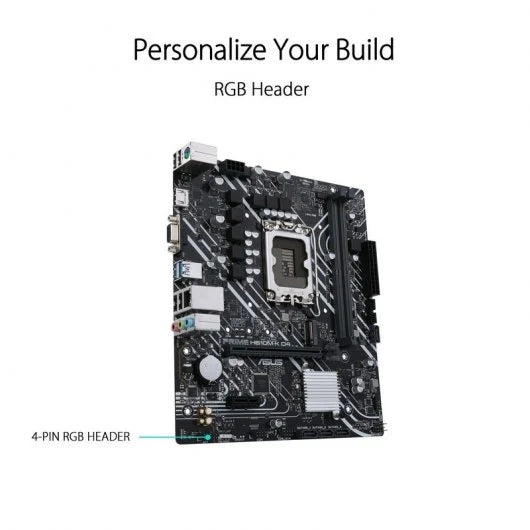

Provides headers for CPU and chassis fans, 24-pin and 8-pin power input, M.2 storage, four SATA drives, USB 3.2 and 2.0 ports, RGB devices, front panel audio, S/PDIF, TPM module, COM port, and chassis front panel connectors.

Special Features
Includes DIGI+ VRM, LANGuard, surge protection, reinforced PCIe slots, stainless steel back I/O, easy installation features, aluminum heatsinks, and RGB control support.

Software And Utilities
Compatible with ASUS Armoury Crate, AI Suite 3, TurboV EVO, EPU, Fan Xpert, ASUS CPU-Z, Norton antivirus trial, and WinRAR. BIOS utilities include CrashFree BIOS 3, EZ Flash 3, and UEFI EZ Mode.

BIOS
128 Mb UEFI AMI BIOS.

Operating System Compatibility
Compatible with Windows® 11 64-bit and Windows® 10 64-bit.

Form Factor
MicroATX, measuring 23.4 x 20.3 cm.

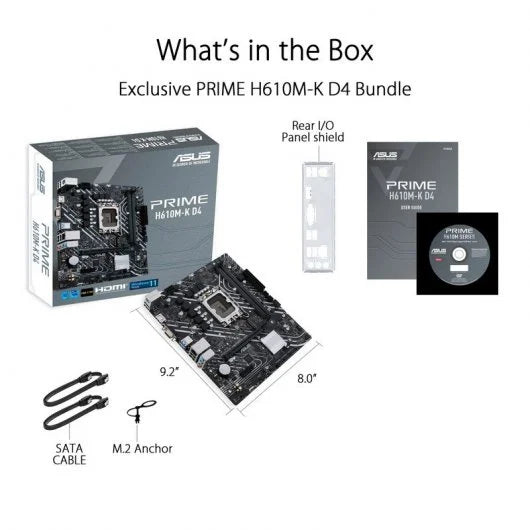

Included Accessories
Comes with SATA cables, I/O shield, M.2 screw, support DVD, and user guide.
