About the product

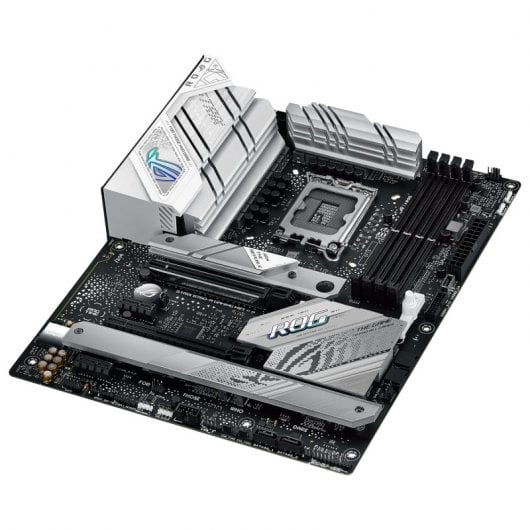

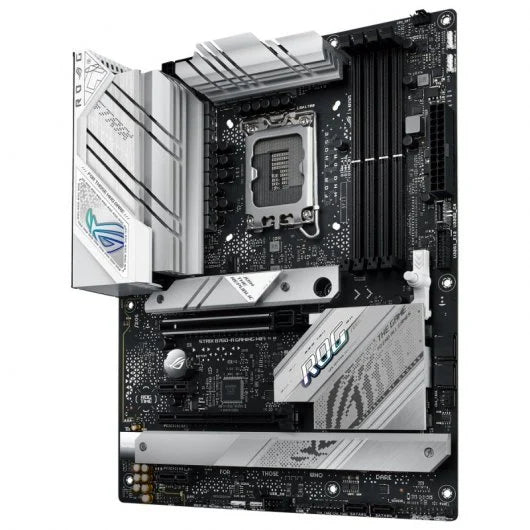

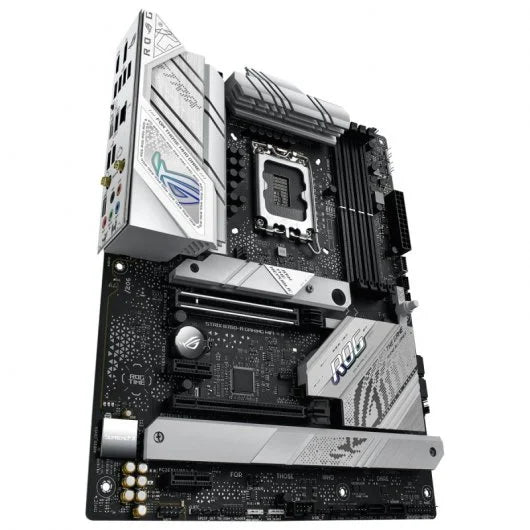

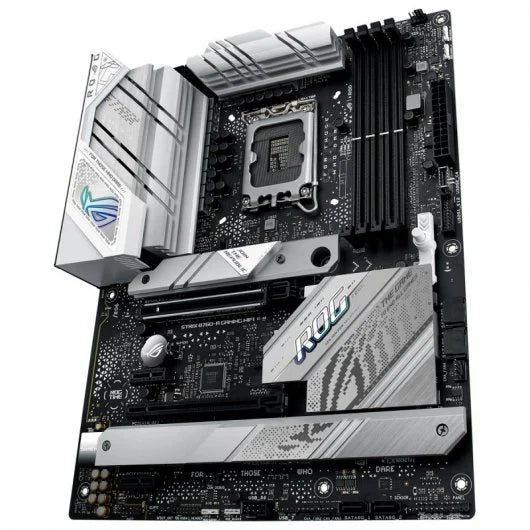

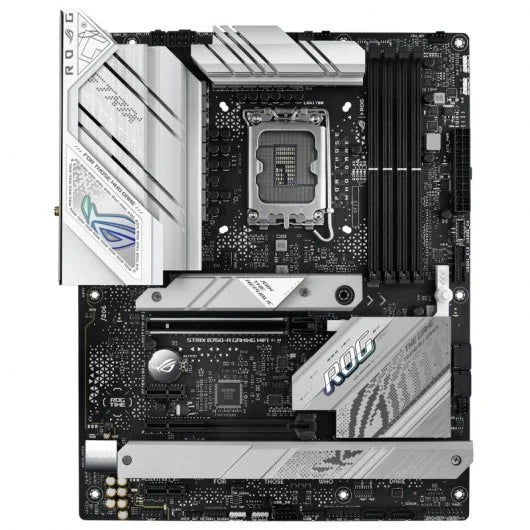

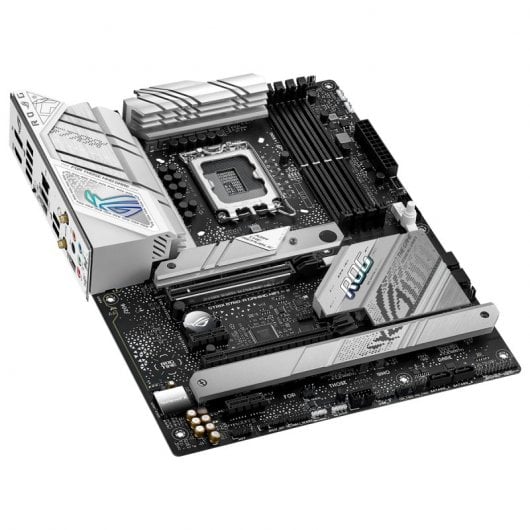

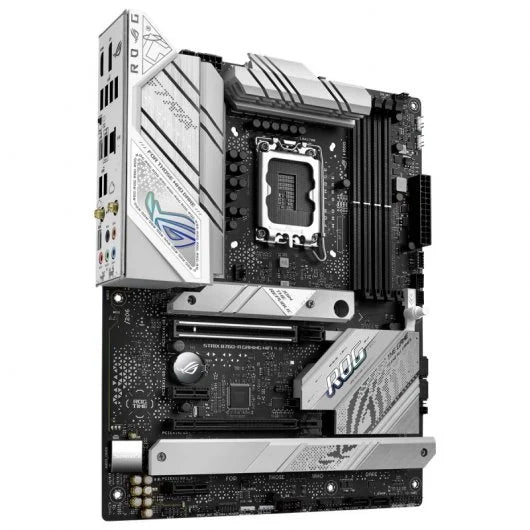

The ROG STRIX B760-A GAMING WIFI is a white ATX motherboard with an Intel B760 chipset and LGA 1700 socket, designed for 12th and 13th Gen Intel Core processors. It features a 12+1 DrMOS power stage design, support for DDR5 memory, PCIe 5.0 SafeSlot, three PCIe 4.0 M.2 slots, WiFi 6E, USB 3.2 Gen 2x2 Type-C, and Aura Sync RGB lighting.

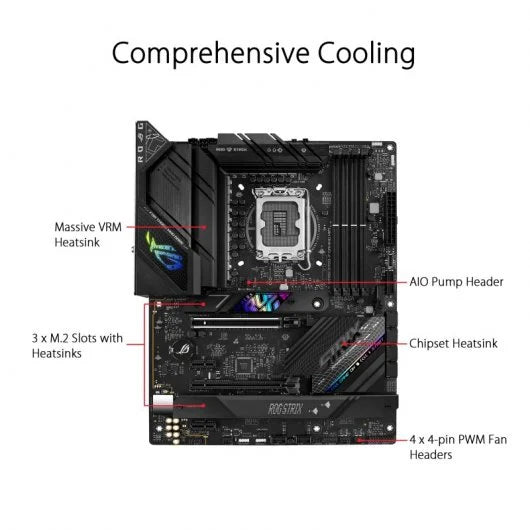

It is optimized for powerful multi-core processors with high-quality power delivery components, including ProCool power connectors, alloy chokes, and durable capacitors. The VRM benefits from large heatsinks and high-conductivity thermal pads to maintain stable performance under heavy loads.

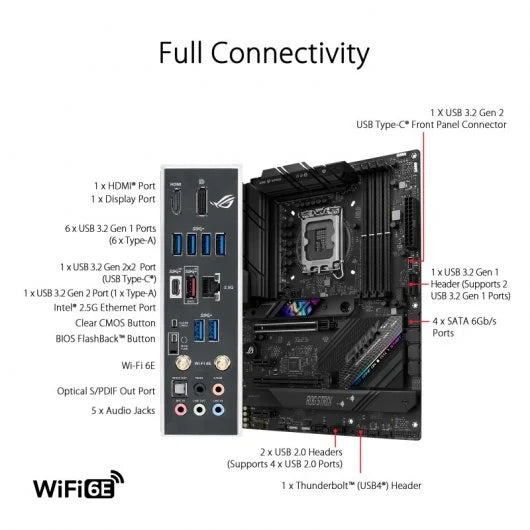

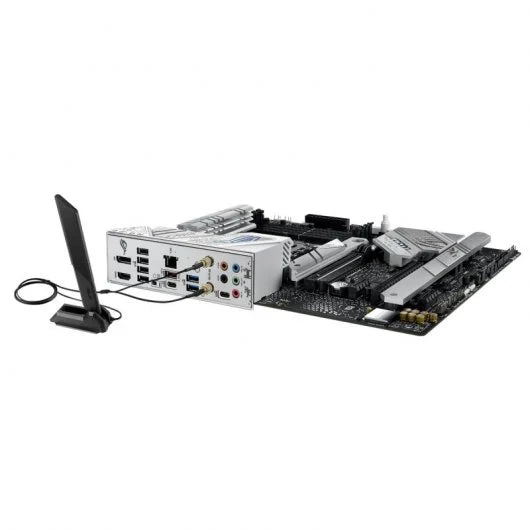

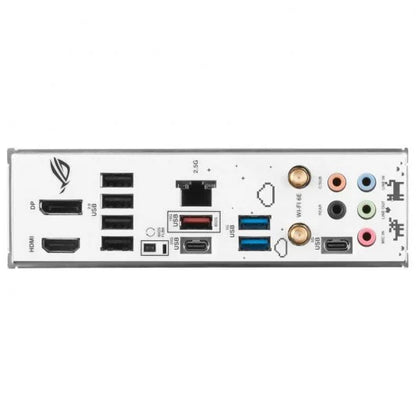

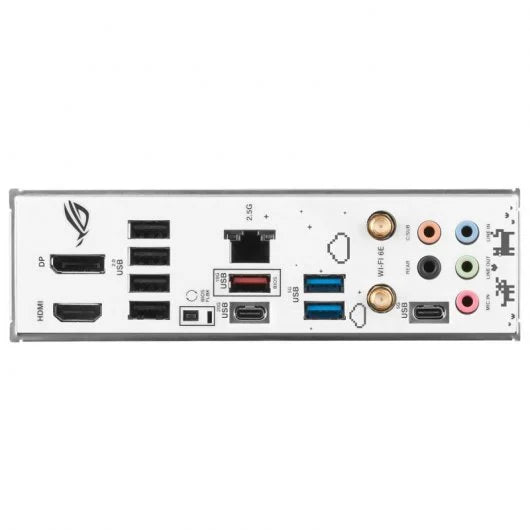

The motherboard provides three M.2 PCIe 4.0 slots, each with a heatsink for consistent data transfer speeds. Connectivity options include integrated Intel WiFi 6E and 2.5G Ethernet with ASUS LANGuard for fast, reliable networking. The rear I/O features a USB 3.2 Gen 2x2 Type-C port, along with several USB 3.2 Gen 2 and Gen 1 ports, plus front-panel USB connectivity, PCIe 5.0 x16 safety-reinforced slot, and both HDMI 2.1 and DisplayPort 1.4 outputs.
Smart features include AI Networking and two-way AI noise cancellation for streamlined setup and enhanced performance. DIY ease-of-use is supported with Q-Release for PCIe, Q-Latch for M.2, BIOS FlashBack, Q-LED diagnostics, and more.

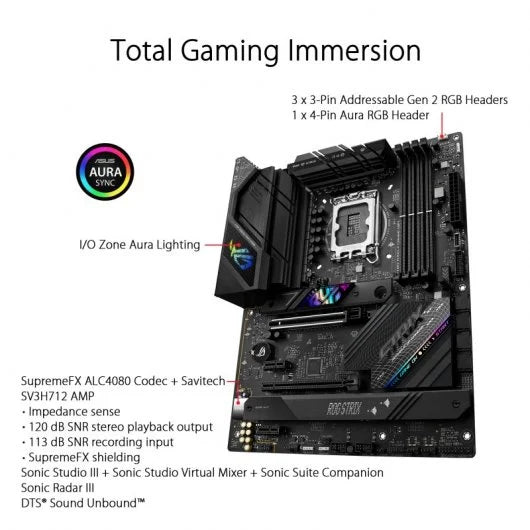

For audio, the board offers an industry-leading solution with the ALC4080 codec, Savitech amplifier, DTS Sound Unbound, and Sonic Studio III. It also comes with a 60-day free trial of AIDA64 Extreme and an intuitive UEFI BIOS with MemTest86 built in.
The ROG STRIX B760-A GAMING WIFI supports up to 128 GB of DDR5 memory at speeds up to 7800+ MHz via four DIMM slots and dual-channel architecture. For expansion, it includes PCIe 5.0 and PCIe 3.0 slots and supports up to three M.2 SSDs and four SATA drives. Wireless connectivity is handled by WiFi 6E with Bluetooth 5.3 and it supports Windows 11 and Windows 10 64-bit operating systems.

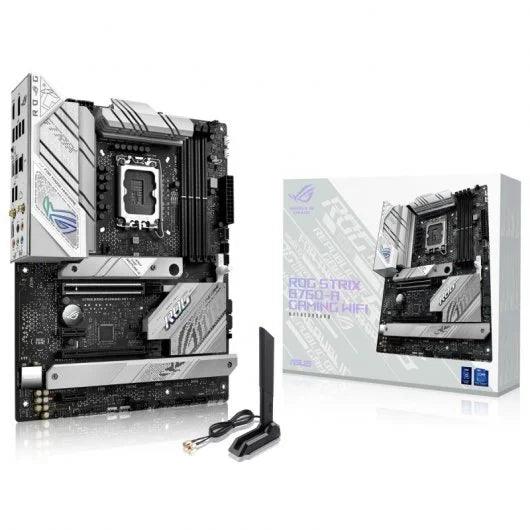

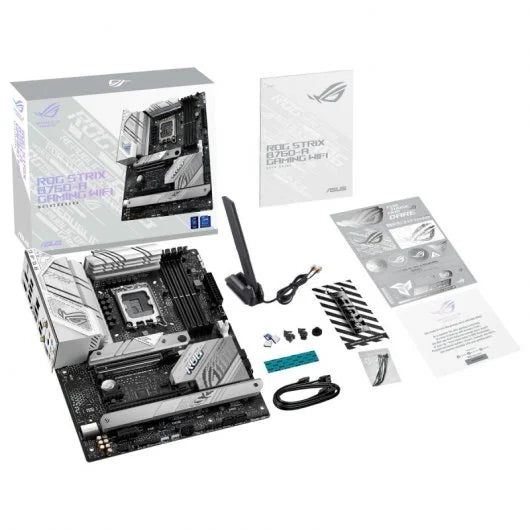

This ATX form factor motherboard measures 30.5cm x 24.4cm and includes various accessories such as SATA cables, a WiFi antenna, rubber pads for M.2, stickers, a thank-you card, and user documentation.
