About the product

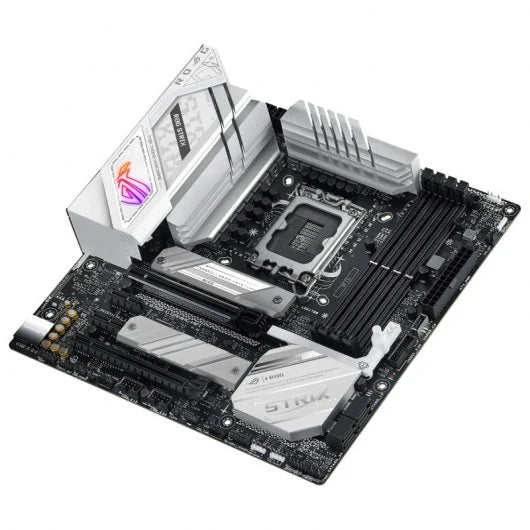

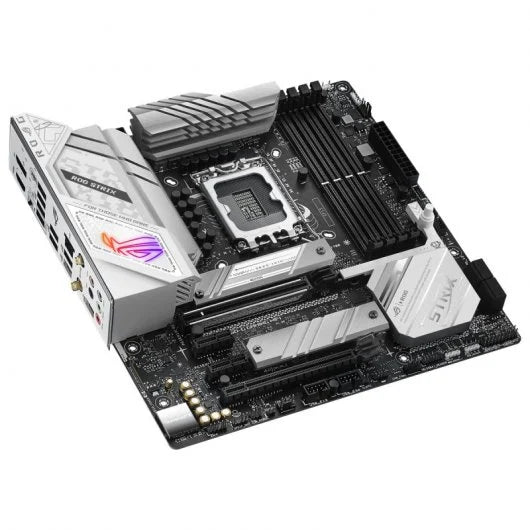

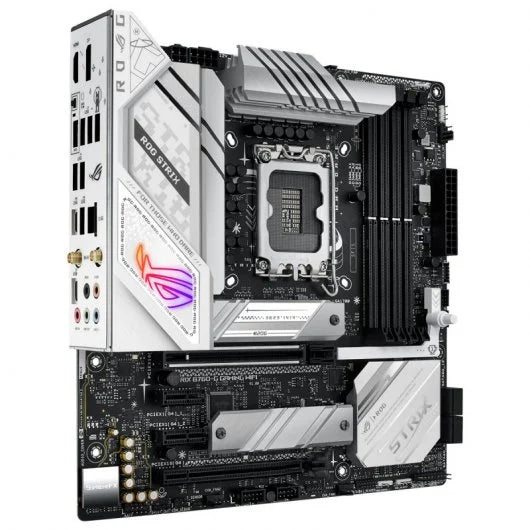

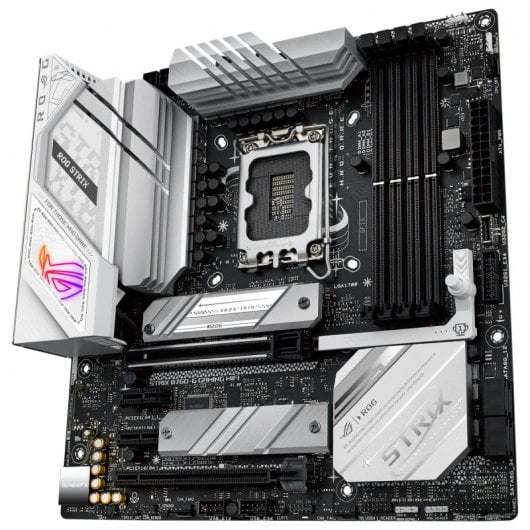

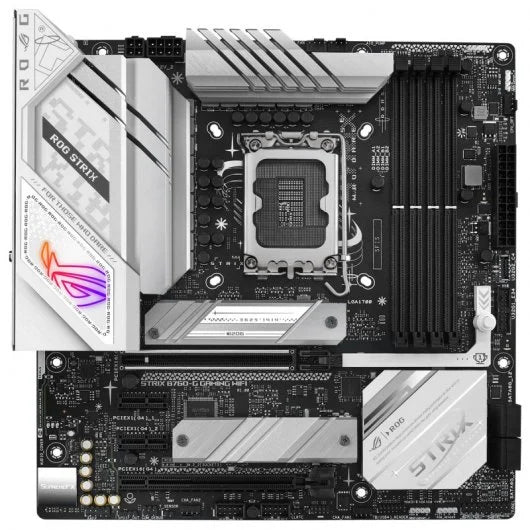

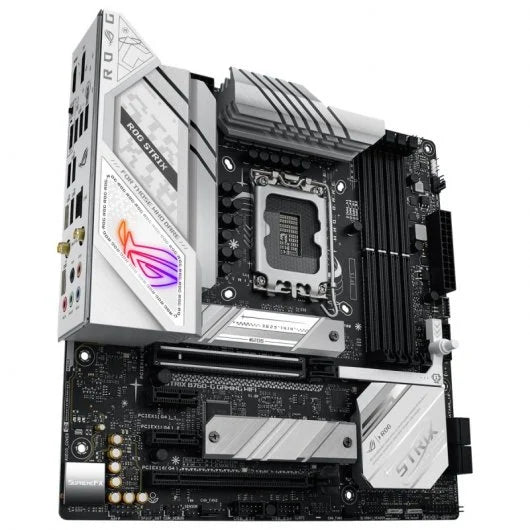

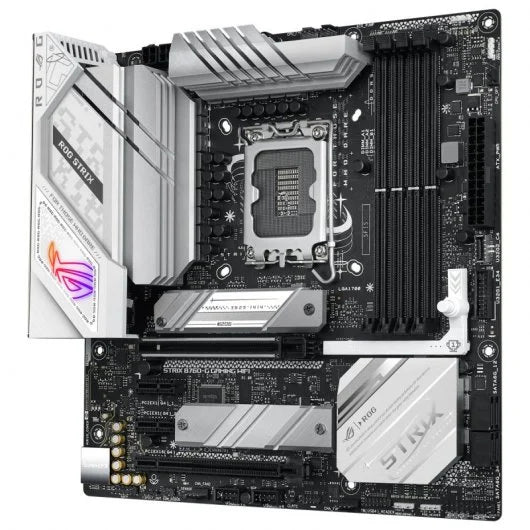

The ROG STRIX B760-G GAMING WIFI is a compact and stylish white micro-ATX motherboard built for gamers and PC enthusiasts who demand performance, fast connectivity, and a DIY-friendly design. Powered by the Intel B760 chipset, this motherboard supports the latest Intel 12th and 13th generation processors and offers next-level features like PCIe 5.0, DDR5 support, and integrated WiFi 6E.
Features
Compatible with Intel Core 12th and 13th generation processors, as well as Pentium Gold and Celeron CPUs, using the LGA 1700 socket.
Optimized power delivery with 12+1 power stages, durable capacitors, and reinforced power connectors to support modern multi-core CPUs.
Enhanced VRM cooling through large heatsinks, ensuring stable performance during heavy workloads.
Includes two PCIe 4.0 M.2 slots with integrated heatsinks for smooth, fast storage performance.

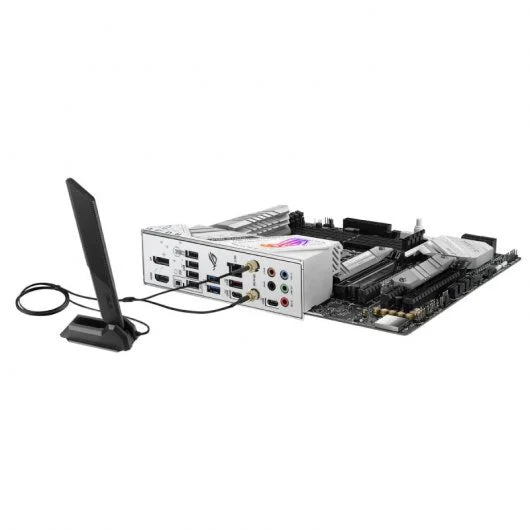

Advanced connectivity options with built-in WiFi 6E, Intel 2.5G Ethernet, a USB 3.2 Gen 2x2 Type-C rear port, and multiple front and back USB ports.
Smart management tools like AI Networking and Two-Way AI Noise Cancelation provide seamless usability and improved performance.
DIY-friendly design elements include Q-Release for PCIe slots, M.2 Q-Latch, BIOS FlashBack, and built-in diagnostic LEDs (Q-LED).
High-quality audio powered by SupremeFX S1220A codec with DTS Sound Unbound and Savitech amplifier for an immersive gaming experience.
Comes with a 60-day trial for AIDA64 Extreme and an intuitive UEFI BIOS with MemTest86 support.
Specifications
CPU Support
Socket: LGA 1700
Processors: Intel 12th & 13th Gen Core, Pentium Gold, Celeron
Supports Intel Turbo Boost Technology 2.0 and Turbo Boost Max 3.0
Chipset
Intel B760
Memory
4 DIMM slots, supports up to 128 GB DDR5
Overclocked speeds up to 7800 MHz+
Dual-channel architecture, XMP support, OptiMem II design
Graphics Outputs
1 DisplayPort 1.4 (up to 4K@60Hz)
1 HDMI 2.1 (up to 4K@60Hz)
Expansion Slots
1 PCIe 5.0 x16 (CPU)
1 PCIe 3.0 x16 (x4 mode, chipset)
2 PCIe 4.0 x1 slots
Storage Support
2 M.2 PCIe 4.0 x4 slots
4 SATA 6 Gb/s ports
Supports RAID 0/1/5/10
Networking
Intel 2.5Gb Ethernet with LANGuard
WiFi 6E, 2x2 antenna support, Bluetooth 5.3

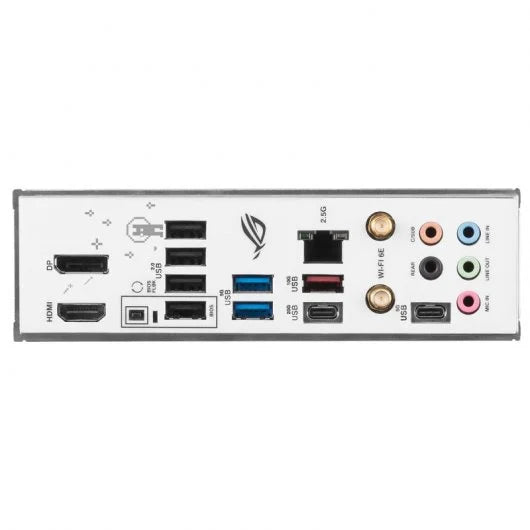

USB Ports
Rear: 1 USB 3.2 Gen 2x2 Type-C, 1 USB 3.2 Gen 2 Type-A, 3 USB 3.2 Gen 1, 4 USB 2.0
Front: USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1 header (2 ports), USB 2.0 header (4 ports)
Audio
SupremeFX 7.1-channel audio, S1220A codec
High-quality 120 dB SNR playback, 113 dB SNR recording
Savitech SV3H712 headphone amp
Form Factor
micro-ATX, 24.4 cm x 24.4 cm

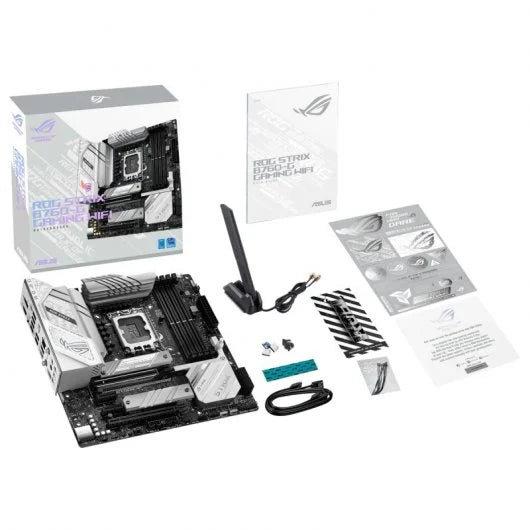

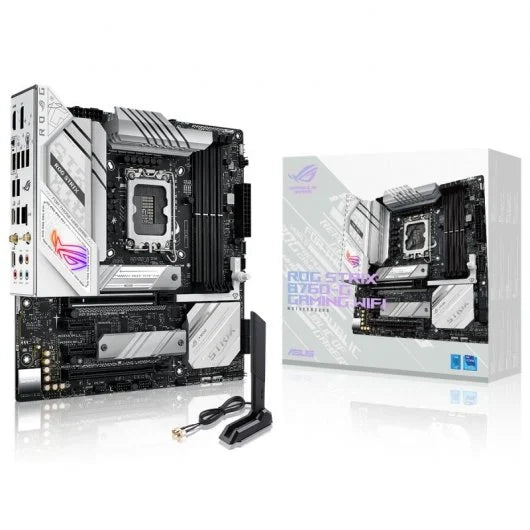

Package Contents
2 SATA cables, WiFi antennas, thermal pad, M.2 accessories, cable ties, ROG keychain, stickers, and user manual
Supported OS
Windows 10 and 11 (64-bit)
