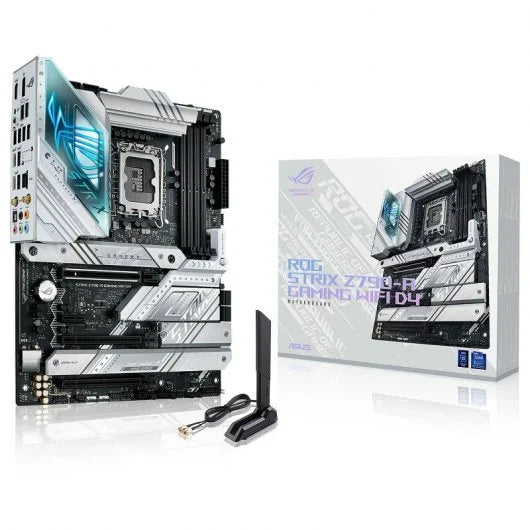

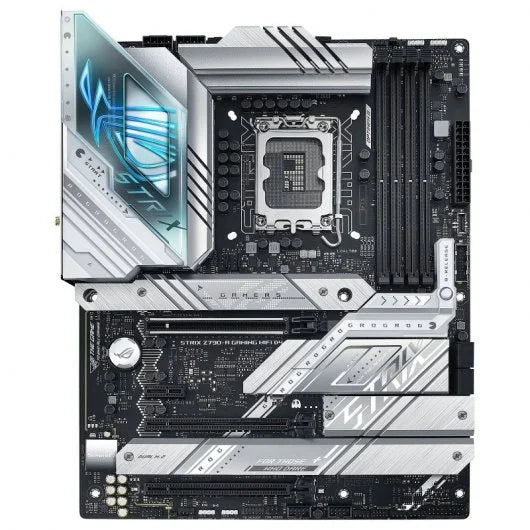

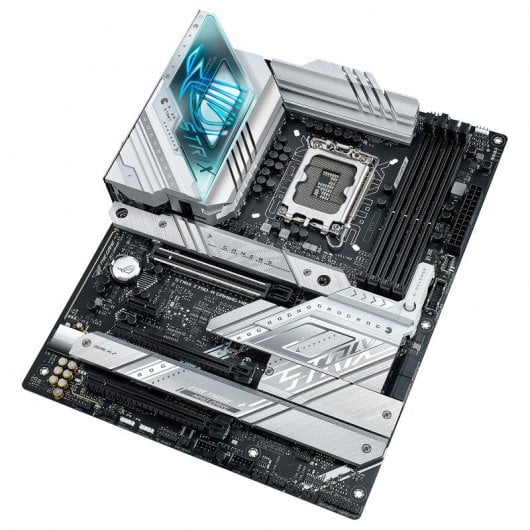

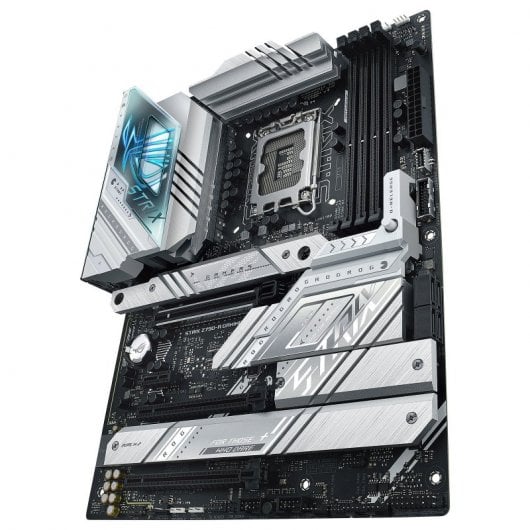

Motherboard ASUS ROG STRIX Z790-A GAMING WIFI D4

About the Product
Intel® Z790 LGA 1700 ATX motherboard featuring 16 + 1 power stages, DDR4 memory support, four M.2 slots, PCIe® 5.0 x16 SafeSlot with Q-Release, WiFi 6E, rear USB 3.2 Gen 2x2 Type-C® and an additional front panel port with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, and Aura Sync RGB lighting.

Features
Intel® LGA 1700 Socket: Ready for 13th Gen Intel® Core™ processors and compatible with 12th Gen Intel Core™, Pentium® Gold, and Celeron® processors.
Powerful power solution: 16 + 1 teamed power stages rated for 70A with dual ProCool II power connectors, high-quality alloy chokes, and premium metallic capacitors to support multi-core CPUs.
Optimized VRM temperatures: Massive integrated heatsinks connected to the I/O cover with an L-shaped heat pipe for efficient cooling.
Next-generation M.2 support: One PCIe® 4.0 M.2 slot with heatsink and backplate, plus three additional PCIe 4.0 M.2 slots — all equipped with heatsinks.
Extensive connectivity: Rear USB 3.2 Gen 2x2 Type-C® and front panel Type-C® port with PD 3.0 (up to 30W), USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4.
High-performance networking: Integrated Intel Wi-Fi 6E (802.11ax), Marvell® AQtion 10 Gb Ethernet, Intel 2.5 Gb Ethernet, and ASUS LANGuard protection.
Intelligent control: Exclusive ASUS AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelling simplify setup and enhance performance.
Immersive audio: ALC4080 codec with Savitech SV3H712 amplifier, DTS® Sound Unbound, and Sonic Studio III for rich, detailed sound.
Unmatched personalization: Exclusive ASUS Aura Sync RGB lighting with one RGB header and three addressable Gen 2 headers.
Easy DIY design: ROG Water Cooling Zone, PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, and Clear CMOS button.
Renowned software: Includes a 1-year AIDA64 Extreme trial and an intuitive UEFI BIOS with built-in MemTest86.

Specifications

CPU
Intel® Socket LGA1700 for 13th & 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.

Chipset
Intel® Z790 Chipset

Memory
4 x DIMM slots, up to 128GB DDR4
Supports up to 5333(OC) MHz, dual-channel architecture, Intel® XMP, and OptiMem III technology.

Graphics
1 x DisplayPort (up to 8K@60Hz)
1 x HDMI® (up to 4K@60Hz)

Expansion Slots
1 x PCIe 5.0 x16 slot (CPU)
2 x PCIe 4.0 x16 slots (x4/x4 mode)
1 x PCIe 3.0 x1 slot

Storage
4 x M.2 slots, 4 x SATA 6Gb/s ports
Supports PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

Ethernet
1 x Intel® 2.5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth
Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency bands
Bluetooth® 5.3

USB Ports
Rear:
1 x USB 3.2 Gen 2x2 Type-C®
3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C®)
4 x USB 3.2 Gen 1 (Type-A)
2 x USB 2.0 (Type-A)

Front:
1 x USB 3.2 Gen 2x2 Type-C® (up to 30W PD)
1 x USB 3.2 Gen 1 header (2 ports)
2 x USB 2.0 headers (4 ports)

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
120 dB SNR stereo playback, 113 dB SNR recording, 32-bit/384 kHz support
Features: Savitech SV3H712 AMP, DTS® Sound Unbound, SupremeFX Shielding, premium capacitors, and optical S/PDIF out.

Back Panel I/O
1 x USB 3.2 Gen 2x2 Type-C®
3 x USB 3.2 Gen 2 (2 x Type-A, 1 x Type-C®)
4 x USB 3.2 Gen 1 (Type-A)
2 x USB 2.0 (Type-A)
1 x DisplayPort
1 x HDMI®
1 x Intel® 2.5Gb Ethernet
1 x Wi-Fi module
5 x audio jacks
1 x optical S/PDIF out
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O
1 x 24-pin main power connector
2 x 8-pin +12V CPU connectors
4 x M.2 slots
4 x SATA 6Gb/s ports
Multiple 4-pin fan and pump headers
RGB and Addressable Gen 2 headers
Thunderbolt™ header
Front panel audio, USB, and power connectors

Special Features
Extreme Engine Digi+, M.2 heatsink backplates, SafeSlot, SafeDIMM, Aura Sync RGB, Q-Design, AI Overclocking, AI Cooling II, AI Networking, Two-Way AI Noise Cancelling.

Software
Includes Armoury Crate, AIDA64 Extreme (1-year trial), Sonic Studio III, Sonic Radar III, GameFirst VI, AI Suite 3, and more.

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Form Factor
ATX, 12 x 9.6 inches (30.5 x 24.4 cm)

Operating System
Windows® 11, Windows® 10 (64-bit)
