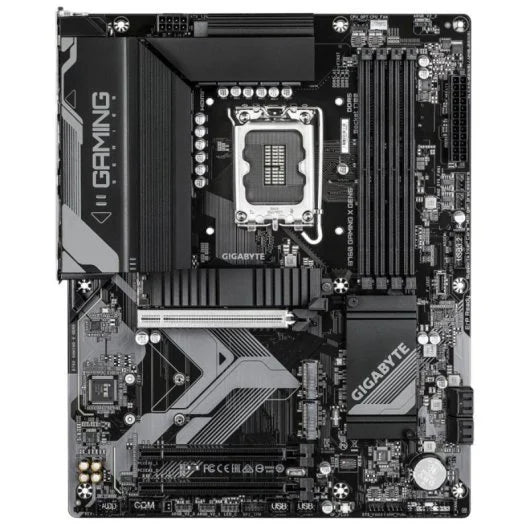

Motherboard Gigabyte B760 Gaming X GEN5 Intel B760 DDR5 ATX

About the product
Boost your high-performance PC with the Gigabyte B760 Gaming X GEN5, ideal for enthusiasts and professionals seeking reliability, speed, and advanced expansion options.

This motherboard is optimized for the latest Intel Core processors, supporting 12th, 13th, and 14th generation Intel Core, Celeron, and Pentium CPUs on the LGA 1700 socket. It delivers maximum performance for gaming, video editing, 3D modeling, and demanding multitasking. The 8+1+1 phase VRM ensures stability even under overclocking or sustained workloads.

It supports ultra-fast DDR5 memory, accommodating up to 256 GB at 5600 MHz. With four DIMM slots and support for both ECC and non-ECC memory, it offers flexibility for expanding as your needs grow—perfect for rendering, competitive gaming, or professional workflows.

For storage, the B760 Gaming X GEN5 features three PCIe 4.0 M.2 slots and four SATA III ports, enabling hybrid storage configurations with NVMe SSDs and traditional HDDs. RAID 0, 1, 5, and 10 are supported, offering both speed and data redundancy for critical environments.

Expansion is future-proof, with a PCIe 5.0 x16 slot for the latest graphics cards and backward compatibility with older standards. Networking includes 2.5 GbE powered by Realtek, along with HDMI 2.1, DisplayPort 1.2, and a wide selection of USB 2.0, USB 3.2 Gen 1, and Gen 2 ports for excellent connectivity.

With support for RGB LED strips, multiple fan connectors, and liquid cooling systems, it's easy to build and monitor custom systems with flair and thermal precision. The Gigabyte B760 Gaming X GEN5 is designed for those who demand a scalable, performance-focused platform with no compromises—perfect for elevating both your projects and gameplay to the next level.

Technical specifications in text format
This ATX motherboard uses the LGA 1700 socket and Intel B760 chipset, supporting Intel Core 12th, 13th, and 14th Gen processors, as well as Celeron and Pentium models. It supports up to 256 GB of DDR5 memory across four DIMM slots at speeds up to 5600 MHz, with ECC and non-ECC compatibility.

Expansion includes one PCIe 5.0 x16 slot and two PCIe 3.0 x16 slots. Storage options consist of three M.2 PCIe 4.0 slots and four SATA III ports, with support for RAID 0, 1, 5, and 10.

Audio is delivered through the Realtek ALC897 codec in 7.1-channel configuration, and network connectivity features a Realtek RTL8125 2.5 Gigabit Ethernet controller.

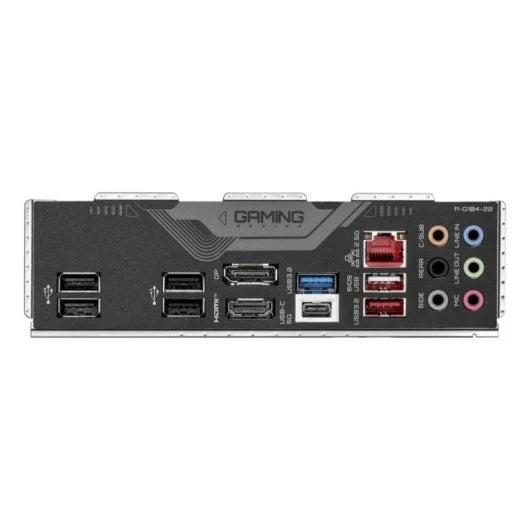

The motherboard supports integrated video output via HDMI 2.1 and DisplayPort 1.2, with a maximum resolution of 4096 x 2304 pixels. Rear I/O includes five USB 2.0 ports, one USB 3.2 Gen 1 Type-A, one USB 3.2 Gen 1 Type-C, and one USB 3.2 Gen 2 port.

It supports RGB lighting via four LED strip headers, is compatible with Windows 10 and Windows 11 (64-bit), measures 305 x 244 mm, weighs 1.56 kg, and comes with a 3-year warranty.
