Motherboard GIGABYTE B760 Gaming X Intel B760 DDR5 ATX

About the product
Upgrade your setup with the GIGABYTE B760 Gaming X, designed for gamers and professionals who demand cutting-edge stability, speed, and connectivity.

Compatible with Intel Core processors up to the 14th generation on the LGA 1700 socket, this motherboard offers a solid foundation for modern high-performance systems. The Intel B760 chipset efficiently handles heavy multitasking, competitive gaming, and demanding professional workloads without bottlenecks.

It supports ultrafast DDR5 memory with speeds up to 5600 MHz and a maximum capacity of 256 GB across dual-channel architecture. With both ECC and non-ECC support, it delivers unmatched stability and multitasking capacity, even under extreme use.

For storage, it includes up to three PCIe 4.0 M.2 slots and four SATA III ports, with RAID 0, 1, 5, and 10 support. Ideal for rapid boot times, swift file transfers, and data-secure workflows—essential for content creators, streamers, and designers.

Connectivity is top-notch with Intel AX210 WiFi 6E, Realtek 2.5 GbE LAN, Bluetooth 5.3, and several USB 3.2 Gen 2 Type-A and Type-C ports. This board enables fast, low-latency networks and high data throughput for modern devices.

Built in an ATX form factor, it features PCIe 5.0 x16 for next-gen GPUs and customizable RGB headers, ideal for enthusiasts who want power and aesthetics. Pair it with cutting-edge components for a setup that's as high-performing as it is visually stunning.

Whether you're building a gaming beast or a professional workstation, the GIGABYTE B760 Gaming X provides the speed, stability, and versatility you need.

Specifications in text format

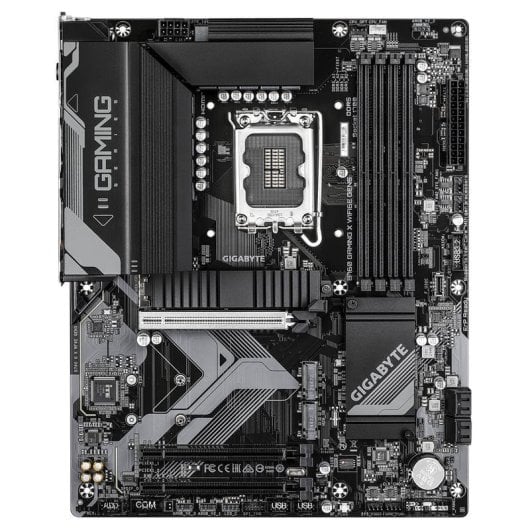

This ATX motherboard uses the LGA 1700 socket and Intel B760 chipset, supporting Intel Core processors from the 12th, 13th, and 14th generations, as well as Pentium and Celeron models. It supports up to 256 GB of DDR5 memory across four DIMM slots at speeds up to 5600 MHz, in dual-channel configuration, with both ECC and non-ECC types compatible.

For storage, it offers three PCIe 4.0 M.2 slots and four SATA III ports, supporting RAID levels 0, 1, 5, and 10. There’s one PCIe 5.0 x16 slot for graphics cards and two PCIe 3.0 x16 slots for expansion.

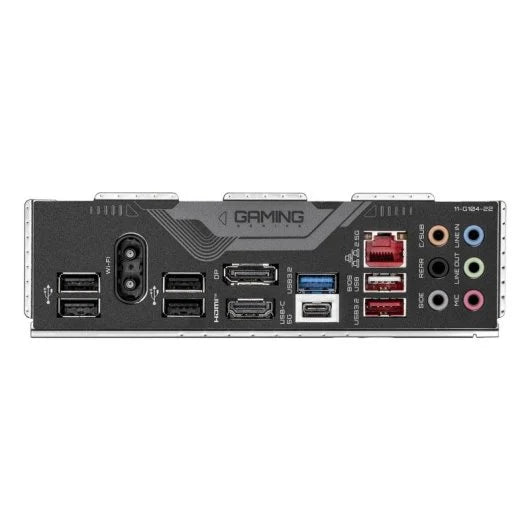

Networking is handled by Intel AX210 WiFi 6E with Bluetooth 5.3 and Realtek 2.5 GbE Ethernet. Video outputs include HDMI 2.1 and DisplayPort 1.2 with support up to 4096 x 2304 resolution. Audio is powered by the Realtek ALC897 7.1-channel codec.

RGB customization is available through four addressable LED strip headers. It supports Windows 10 and 11 (64-bit) and includes accessories like an antenna, screws, CMOS battery, and a Norton Internet Security license.
