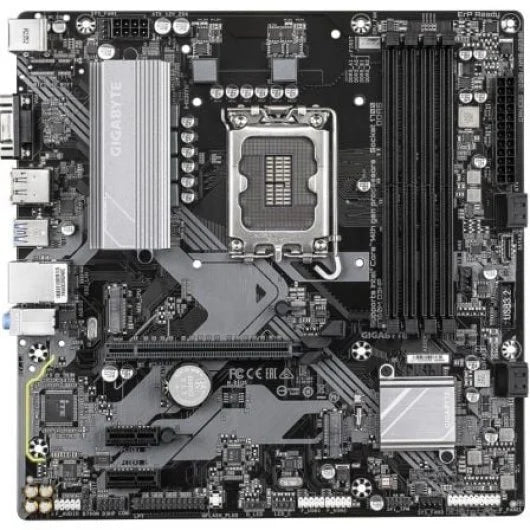

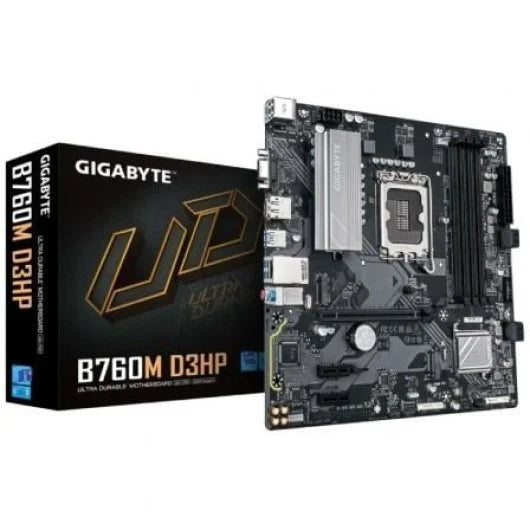

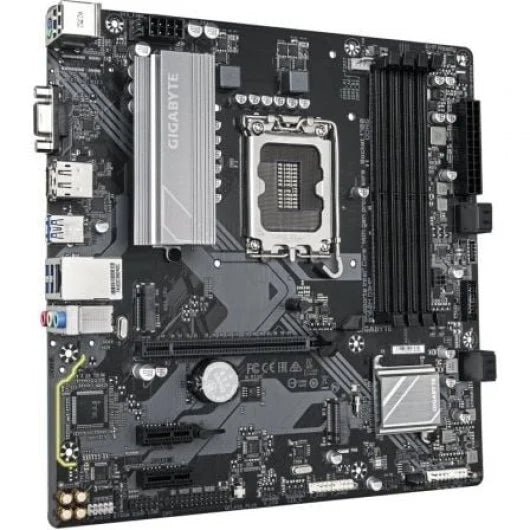

Motherboard Gigabyte B760M D3HP Intel B760 Micro ATX

About the product
The Gigabyte B760M D3HP motherboard is designed for users who need maximum compatibility, powerful performance, and reliable stability. Built for the latest Intel® Core™ processors in a compact Micro ATX form factor, this motherboard allows you to build compact yet powerful PCs.

It supports up to four DDR5 memory modules, enabling ultra-fast RAM configurations that are ideal for competitive gaming, advanced video editing, and demanding professional applications. The motherboard includes dual M.2 PCIe 4.0 x4 slots, providing lightning-fast storage speeds and rapid system boot times for intensive workloads.

With Realtek Gigabit LAN for stable network connectivity and multi-channel audio for clear sound, this board is suitable for gaming and multimedia applications. It includes HDMI 2.1, DisplayPort 1.2, and D-Sub video outputs, which make it easy to connect multiple high-resolution monitors — perfect for creative or productivity-focused environments.

Compatibility concerns are reduced thanks to its broad selection of USB ports and the Q-Flash Plus feature, which allows users to update the BIOS without a CPU installed. It also features Smart 6 hybrid fan headers for intelligent cooling management, ensuring optimal thermal performance under heavy load.

If you're seeking a solid and future-ready foundation for a high-performance PC, the Gigabyte B760M D3HP offers professional-grade reliability, advanced storage options, RAID support, and full DDR5 memory compatibility.

Specifications in text format
This motherboard supports Intel Core 12th, 13th, and 14th Gen processors with an LGA1700 socket. It is based on the Intel B760 Express chipset and has a Micro ATX form factor. It includes four DDR5 DIMM slots with support for up to 256GB of RAM in dual-channel configuration and offers XMP overclocking support.

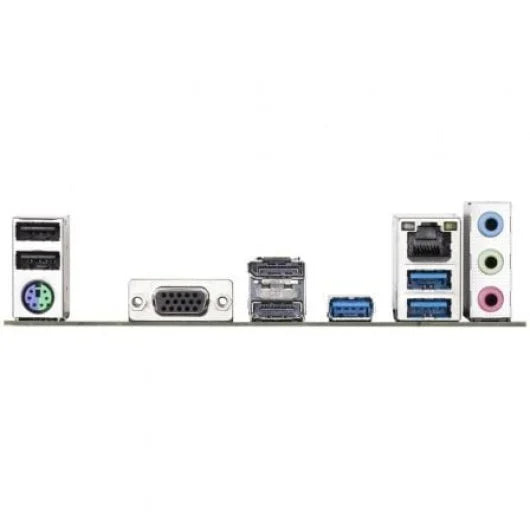

For storage, it includes two M.2 PCIe 4.0 x4 slots and four SATA 6Gbps ports. Network connectivity is handled by Realtek Gigabit Ethernet, and audio is provided via a Realtek multi-channel controller. The board features HDMI 2.1, DisplayPort 1.2, and D-Sub video outputs.

It comes with USB 3.2 Gen1 Type-C and Type-A ports, and supports RAID configurations 0, 1, 5, and 10. Additional features include Q-Flash Plus for BIOS updates without a CPU installed, and Smart 6 hybrid fan headers for enhanced cooling control.
