Motherboard Gigabyte B760M E DDR5 micro ATX

About the product
Enhance your PC’s capabilities with the GIGABYTE B760 LGA1700 Micro ATX B760M E DDR5 motherboard and enjoy uncompromised performance for professional gaming, content creation, or advanced technical environments.

Text description of features
This motherboard is optimized for Intel Core 12th, 13th, and 14th generation processors on the LGA1700 socket, offering a scalable and robust platform for intensive multitasking, high-level gaming setups, or professional editing workflows. Its 2 DDR5 DIMM slots support up to 128 GB at frequencies up to 7200 MHz (overclocked), delivering exceptional bandwidth and low latency — ideal for simulations, data analysis, and advanced 3D modeling.

Focused on sustained performance and versatility, the board includes 2 PCIe 4.0 M.2 slots and 4 SATA III ports with support for RAID 0, 1, 5, and 10. This enables ultra-fast configurations with both redundancy and data protection, suited for demanding gaming and large-scale creative workflows. Its compatibility with both NVMe SSDs and traditional hard drives ensures a storage layout tailored to both performance and capacity needs.

The 7.1-channel audio powered by Realtek ALC897 provides a professional sound experience perfect for multimedia, intuitive editing, or high-quality streaming. The advanced thermal management system features multiple temperature sensors and fan headers, enabling customizable cooling and thermal stability even under full load.

Triple video output support via HDMI 2.1, DisplayPort 1.2, and VGA allows versatility in dual-monitor setups, multitasking environments, or 4K displays. Its Gigabit Ethernet, powered by the Realtek RTL8111H chip, ensures fast data transfers and stable online gaming. All this in a compact Micro ATX form factor ideal for desks, racks, or custom builds.

If you're looking for reliability, upgrade readiness, and full compatibility with Intel’s next-gen processors, this motherboard provides the solid foundation to power your next professional or gaming setup. Jump into DDR5 architecture and leverage the full potential of PCIe 4.0 and RAID systems.

Specifications in text format

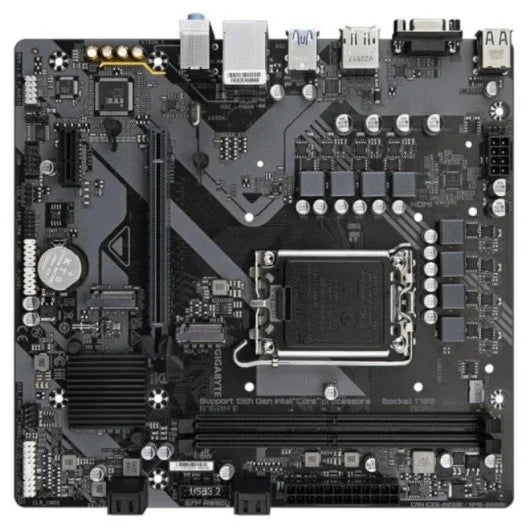

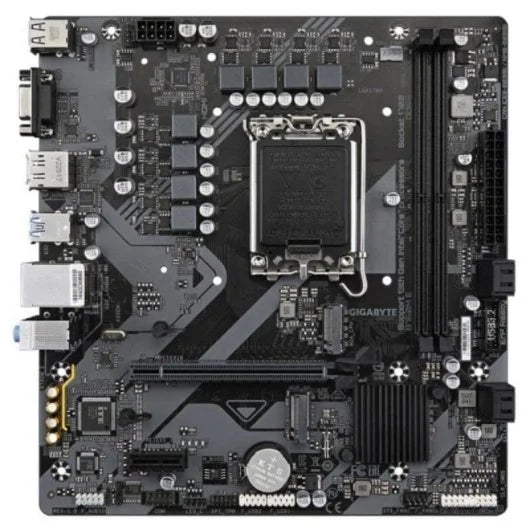

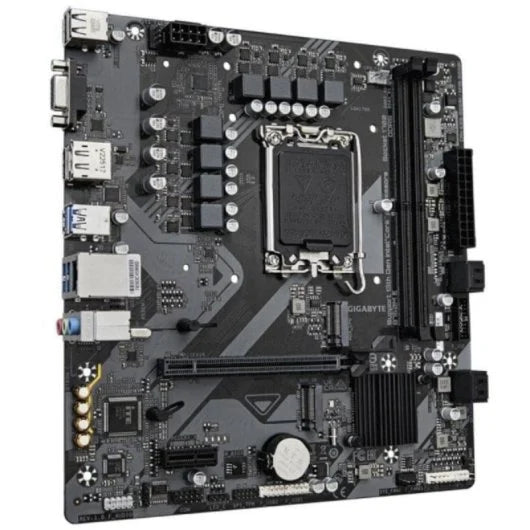

The motherboard uses the LGA1700 socket and supports Intel Core 12th, 13th, and 14th generation processors, including Pentium Gold and Celeron models. It’s built on the Intel B760 chipset and follows the Micro ATX form factor. The two DDR5 memory slots support up to 128 GB of RAM in dual-channel configuration, compatible with both ECC and non-ECC modules, reaching speeds up to 7200 MHz when overclocked.

For storage, the motherboard includes two PCIe 4.0 M.2 slots (up to 2280 size) and four SATA III 6Gb/s ports with RAID 0, 1, 5, and 10 support. Expansion is provided through one PCIe Gen4 x16 slot for GPUs and one PCIe Gen3 x1 slot for additional devices.

Integrated graphics are supported via HDMI 2.1, DisplayPort 1.2, and VGA outputs. The audio subsystem is powered by Realtek ALC897 supporting 7.1-channel high-definition audio. Networking is handled by a Realtek Gigabit Ethernet controller (RTL8111H).

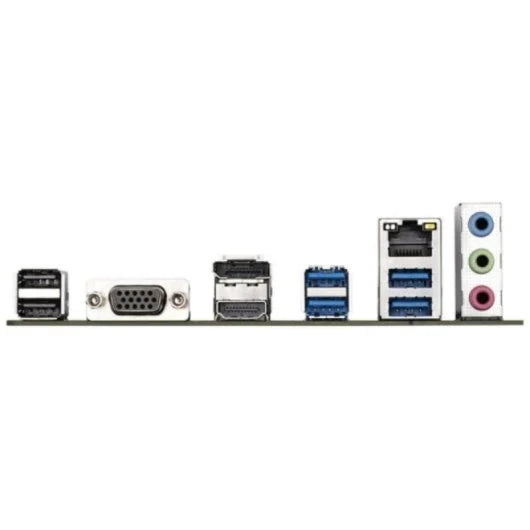

Rear USB connectivity includes two USB 2.0 ports and four USB 3.2 Gen 1 Type-A ports. The power configuration is ATX-based, with 24-pin main and 8-pin EPS connectors. Supported operating systems include Windows 10 64-bit and Windows 11 64-bit.

The motherboard features a UEFI AMI BIOS with 128 MB of storage, Clear CMOS support, and ACPI 5.0 compliance. Its dimensions are 230 x 215 x 35 mm, and it comes with a 3-year warranty.
