Motherboard MSI MAG Z790 TOMAHAWK WIFI

About the product
The MAG series stands with gamers in search of honor. With military-inspired elements built into these gaming products, they emerge as symbols of strength and durability.

Features
Supports 12th and 13th generation Intel Core, Pentium Gold, and Celeron processors for the LGA 1700 socket.
Compatible with DDR5 memory, with speeds up to 7200 MHz (OC).
Enhanced power design with a 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost.
Provides an ultra-fast gaming experience through PCIe 5.0 slots, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2x2.
Premium thermal solution featuring an extended heatsink design and M.2 Shield Frozr, built for high-performance systems and continuous operation.
AUDIO BOOST 5 delivers studio-grade sound quality for the most immersive gaming experience.
High-quality 6-layer PCB built with 2 oz thickened copper and server-grade materials.

Specifications

Processor
Manufacturer: Intel
Socket: LGA 1700
Compatible processors: Intel Celeron, Intel Pentium Gold

Memory
Supported memory type: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel
ECC support: No
Supported memory speeds: from 4800 MHz up to 7200 MHz
Maximum supported memory speed: 5333 MHz
Maximum memory: 128 GB
Unbuffered memory: Yes

Storage Controllers
Supported storage devices: HDD & SSD
Supported interfaces: M.2, PCI Express
Internal storage capacity: 10 GB
RAID levels supported: 0, 5, 10

Graphics
Parallel processing support: Not supported

Internal I/O
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
SATA II connectors: 6
Front audio connector: Yes
Front panel connector: Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes
TPM connector: Yes
RGB LED strip connector: Yes

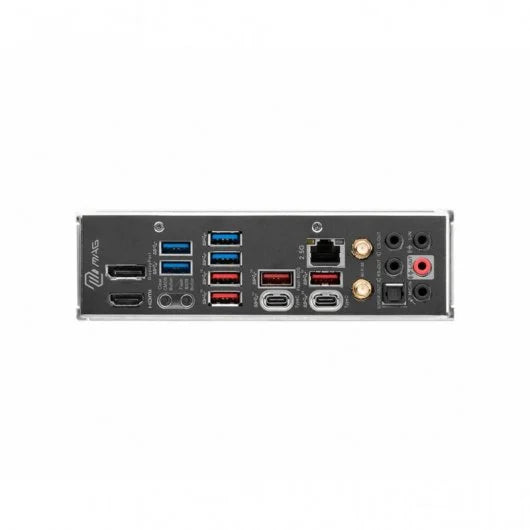

Rear I/O Ports
USB 3.2 Gen 1 Type-A ports: 4
USB 3.2 Gen 2 Type-A ports: 4
USB 3.2 Gen 2 Type-C port: 1
USB 3.2 Gen 2x2 Type-C port: 1
Ethernet LAN port (RJ-45): 1
HDMI port: 1 (version 2.1)
DisplayPort: 1 (version 1.4)
S/PDIF output: Yes

Connectivity
Ethernet: Yes (2.5 Gigabit Ethernet)
WiFi: Yes (Wi-Fi 6 - 802.11ax)
Supported WiFi standards: 802.11a/b/g/n/ac/ax
Bluetooth: Yes (version 5.3)

Other Features
Chipset: Intel Z790
Audio output channels: 7.1 channel
Designed for: PC
Form factor: ATX
Supported operating systems: Windows 10 x64, Windows 11 x64

BIOS
Type: EFI AMI
Memory size: 256 MB/s

Dimensions
Width: 304.8 mm
Depth: 243.8 mm

Package Contents
Includes SATA cables
