About the product

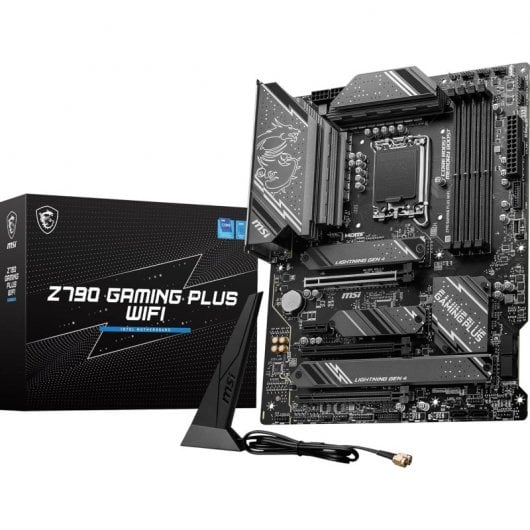

The Z790 GAMING WIFI motherboard is built for gamers who want it all—packed with connectivity, flexible tools, Wi-Fi support, and DDR5 memory compatibility.

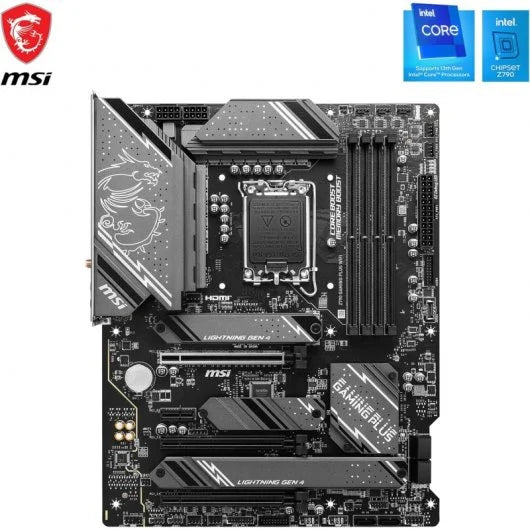

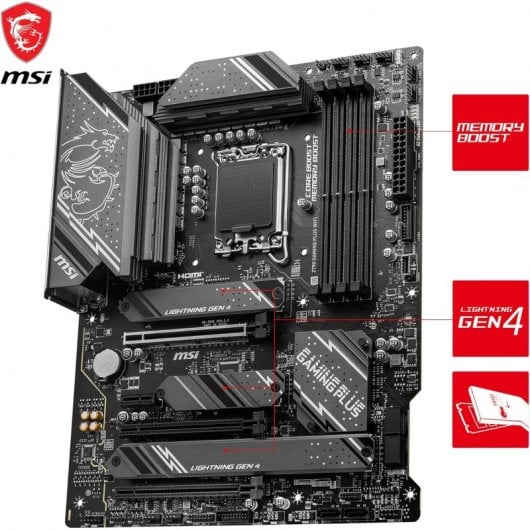

This motherboard supports Intel® Core™, Pentium® Gold, and Celeron® processors from the 12th and 13th generation using the LGA 1700 socket. It supports DDR5 memory with speeds up to 7200+ MHz (overclocked) and up to 192 GB in total. The enhanced power design features a 12+1+1 Duet Rail Power System with DrMOS, 8-pin + 4-pin CPU power connectors, Core Boost, and Memory Boost.
To maintain optimal performance, it includes a premium thermal solution with an extended heatsink, MOSFET thermal pads rated at 7 W/mK, and extra choke pads, ensuring uninterrupted high-performance gaming.

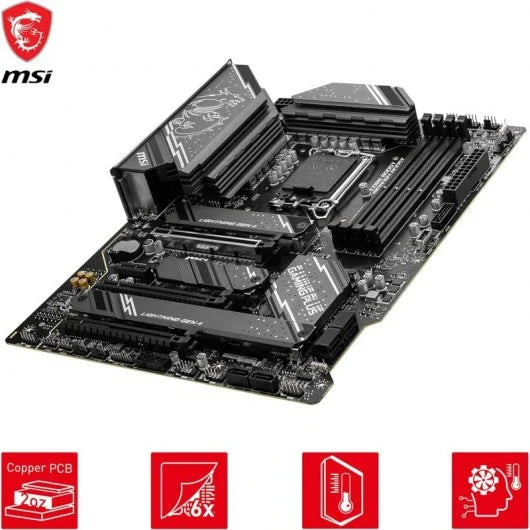

Storage expansion includes four M.2 slots compatible with PCIe 4.0 and equipped with M.2 Shield Frozr for cooling. There are also six SATA III ports. Built on a 6-layer PCB with 2 oz copper traces, this board ensures signal integrity and durability.

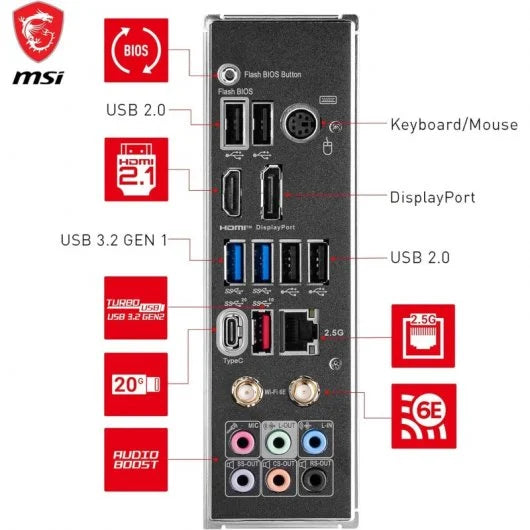

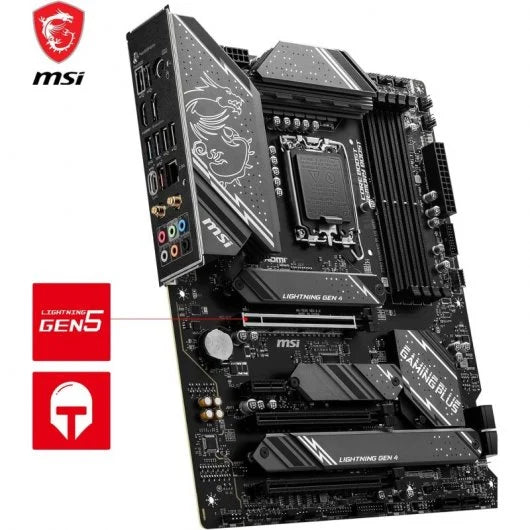

The board supports ultra-fast PCIe 4.0 for GPUs, USB 3.2 Gen 2 and Gen 2x2 ports, and has an integrated Wi-Fi 6 (802.11ax) module with Bluetooth 5.3 for fast wireless networking. The wired LAN supports 2.5 GbE Ethernet.
Audio Boost provides studio-quality 7.1 channel sound with the Realtek ALC897 codec. The board comes in ATX form factor and is compatible with Windows 10 and Windows 11 64-bit systems.

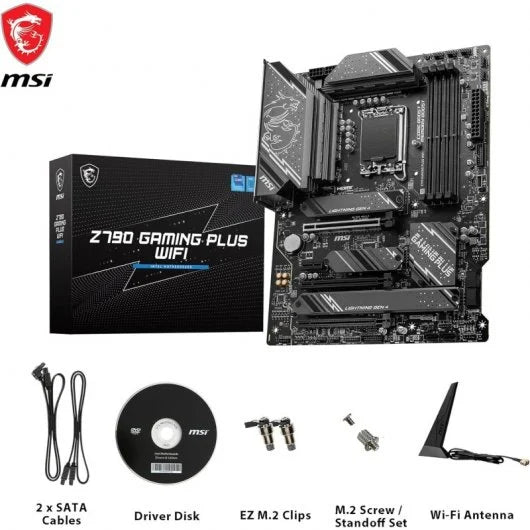

Dimensions of the board are 243.8 mm wide and 304.8 mm deep. The package includes SATA cables.
